Редуктор Kanzaki-Yanmar KMH40A с реверсом для главных (пропульсивных) двигателей
Marine transmission Kanzaki - Yanmar KMH40A for main use.
Specifications
|
Clutch type |
Wet multiple-disc clutch (Angle drive) |
|
Input torque (N・m) |
457 (@5,500rpm) |
|
Reduction ratio (Forward) |
1.24:1 1.53:1 2.04:1 2.45:1 |
|
Reduction ratio (Reverce) |
1.24:1 1.53:1 2.04:1 2.45:1 |
|
Input rotation |
Anticlockwise |
|
Output rotation (from the stern) |
Clockwise or Anticlockwise (Forward) |
|
Oil(L) |
SAE #30 (Single Grade) |
|
Oil capacity(L) |
1.7 |
|
Weight (Dry) (kg) |
29.5 |
|
Standard flange |
Borg Warner |
|
Option |
electric / mechanical trolling, electric servo, PTO |
Редуктор Kanzaki-Yanmar KMH50A с реверсом для главных (пропульсивных) двигателей
Marine transmission Kanzaki - Yanmar KMH50A for main use.
Specifications
|
Clutch type |
Wet multiple-disc clutch (Angle drive) |
|
Input torque (N・m) |
660 (@5,500rpm) |
|
Reduction ratio (Forward) |
1.67:1 2.13:1 2.43:1 |
|
Reduction ratio (Reverce) |
1.67:1 2.13:1 2.43:1 |
|
Input rotation |
Anticlockwise |
|
Output rotation (from the stern) |
Clockwise or Anticlockwise (Forward) |
|
Oil(L) |
SAE #30 (Single Grade) |
|
Oil capacity(L) |
1.8 |
|
Weight (Dry) (kg) |
43 |
|
Standard flange |
Borg Warner |
|
Option |
electric / mechanical trolling, electric servo, PTO |

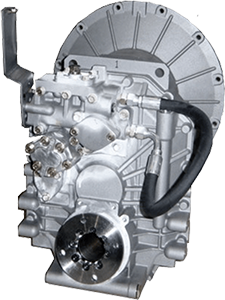

Редуктор Kanzaki-Yanmar KMH50V с реверсом для главных (пропульсивных) двигателей
Marine transmission Kanzaki - Yanmar KMH50V for main use.
Specifications
|
Clutch type |
Wet multiple-disc clutch (Angle drive) |
|
Input torque (N・m) |
660 (@5,500rpm) |
|
Reduction ratio (Forward) |
1.67:1 2.13:1 2.43:1 |
|
Reduction ratio (Reverce) |
1.67:1 2.13:1 2.43:1 |
|
Input rotation |
Anticlockwise |
|
Output rotation (from the stern) |
Clockwise or Anticlockwise (Forward) |
|
Oil(L) |
SAE #30 (Single Grade) |
|
Oil capacity(L) |
1.8 |
|
Weight (Dry) (kg) |
43 |
|
Standard flange |
Borg Warner |
|
Option |
electric / mechanical trolling, electric servo, PTO |
Редуктор Kanzaki-Yanmar KMH61A с реверсом для главных (пропульсивных) двигателей
Marine transmission Kanzaki - Yanmar KMH61A for main use.
Specifications
|
Clutch type |
Wet multiple-disc clutch (Angle drive) |
|
Input torque (N・m) |
1,070 (@5,500rpm) |
|
Reduction ratio (Forward) |
1.55:1 2.04:1 2.43:1 |
|
Reduction ratio (Reverce) |
1.55:1 2.04:1 2.43:1 |
|
Input rotation |
Anticlockwise |
|
Output rotation (from the stern) |
Clockwise or Anticlockwise (Forward) |
|
Oil(L) |
SAE #30 (Single Grade) |
|
Oil capacity(L) |
2.8 |
|
Weight (Dry) (kg) |
58 |
|
Standard flange |
Borg Warner |
|
Option |
electric / mechanical trolling, electric servo, PTO |

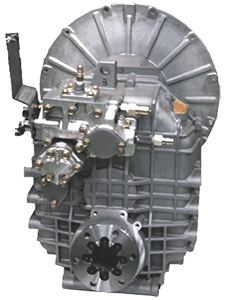

Редуктор Kanzaki-Yanmar KMH61V с реверсом для главных (пропульсивных) двигателей
Marine transmission Kanzaki - Yanmar KMH61V for main use.
Specifications
|
Clutch type |
Wet multiple-disc clutch (V-drive) |
|
Input torque (N・m) |
1,070 (@5,500rpm) |
|
Reduction ratio (Forward) |
1.24:1 1.49:1 1.98:1 2.43:1 |
|
Reduction ratio (Reverce) |
1.24:1 1.49:1 1.98:1 2.43:1 |
|
Input rotation |
Anticlockwise |
|
Output rotation (from the stern) |
Clockwise or Anticlockwise (Forward) |
|
Oil(L) |
SAE #30 (Single Grade) |
|
Oil capacity(L) |
8 |
|
Weight (Dry) (kg) |
82 |
|
Standard flange |
Borg Warner |
|
Option |
electric / mechanical trolling, electric servo, PTO |
